Door pocket lock tongue hinge slot processing machine

نام تجاری:	Shuping
شماره مدل:	DFH-3004-R303
مقدار تولیدی:	1
شرایط پرداخت:	T/T
توانایی عرضه:	10pcs/40 work days

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

Place of Origin:

China

گواهی:

Packaging Details:

Bubble wrap packaging

Supply Ability:

10pcs/40 work days

برجسته کردن:

door pocket lock processing machine,hinge slot cutting machine,door frame machine with warranty

hinge slot cutting machine

door frame machine with warranty

توضیحات محصول

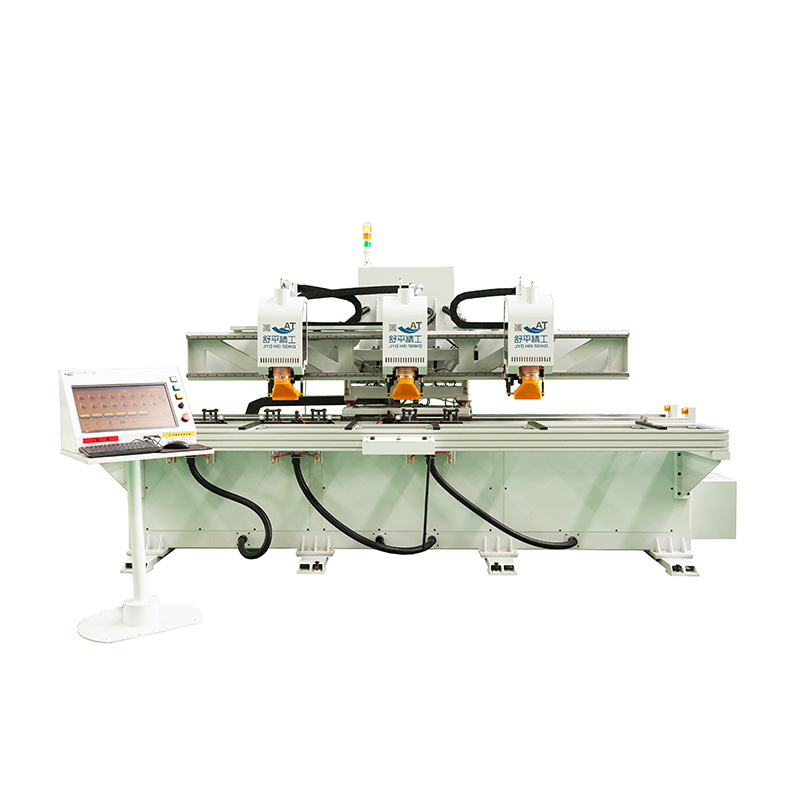

Door Pocket Lock Tongue Hinge Slot Processing Machine

Product Overview

The DFH Door Pocket Lock Tongue Hinge Slot Processing Machine revolutionizes door frame manufacturing by integrating dual functionality into a single industrial unit. Engineered for precision milling of both lock tongue recesses and hinge mounting slots, this CNC-driven system eliminates the need for separate machining stations.

Its triple-synchronized milling heads operate at 9KW combined power (3x3.0KW + 3x0.75KW), enabling simultaneous processing of three hinge positions while maintaining micron-level accuracy.

Key Features & Advantages

1. Triple-Head Efficiency

Three independent milling heads process hinge slots concurrently, reducing operation time by 68% compared to single-head systems. Production capacity: 120+ door frames/hour.

2. Intelligent Thickness Compensation

Patented surface-scanning technology uses the material's top plane as the machining datum, automatically adjusting for thickness variations (20-45mm). Ensures ±0.01mm slot depth consistency.

3. Aesthetic Precision Engineering

Anti-splinter carbide milling bits with dust extraction ports deliver burr-free, museum-grade finishes. Hinge slots maintain 0.2mm margin tolerance for seamless hardware integration.

4. Flexible Production Modes

Operate as a standalone unit or integrate into automated door production lines. Quick-change fixtures accommodate widths from 90mm (residential) to 400mm (commercial doors).

Technical Specifications

Parameter	Value
Workpiece Length	1800-2600mm
Workpiece Width	90-400mm
Material Thickness	20-45mm
Milling Shaft Power	3.0KW × 3
Reverse Milling Power	0.75KW × 3
Machine Dimensions (L×W×H)	4000×2000×2200mm
Positioning Accuracy	±0.01mm

Frequently Asked Questions

Q: Can this machine process metal-reinforced door frames?

A: This equipment is exclusively designed for wood composites and engineered timber. Metal reinforcements require specialized machining solutions.

Q: How to switch between lock tongue and hinge processing modes?

A: Seamless transition via barcode scanning - scan work order commands to automatically reconfigure tool paths.

Q: Does it require compressed air?

A: Self-contained vacuum system requires 220V/380V power only.

Q: Maintenance cycle?

A: Automated lubrication extends service intervals to 500 operating hours.
